Description

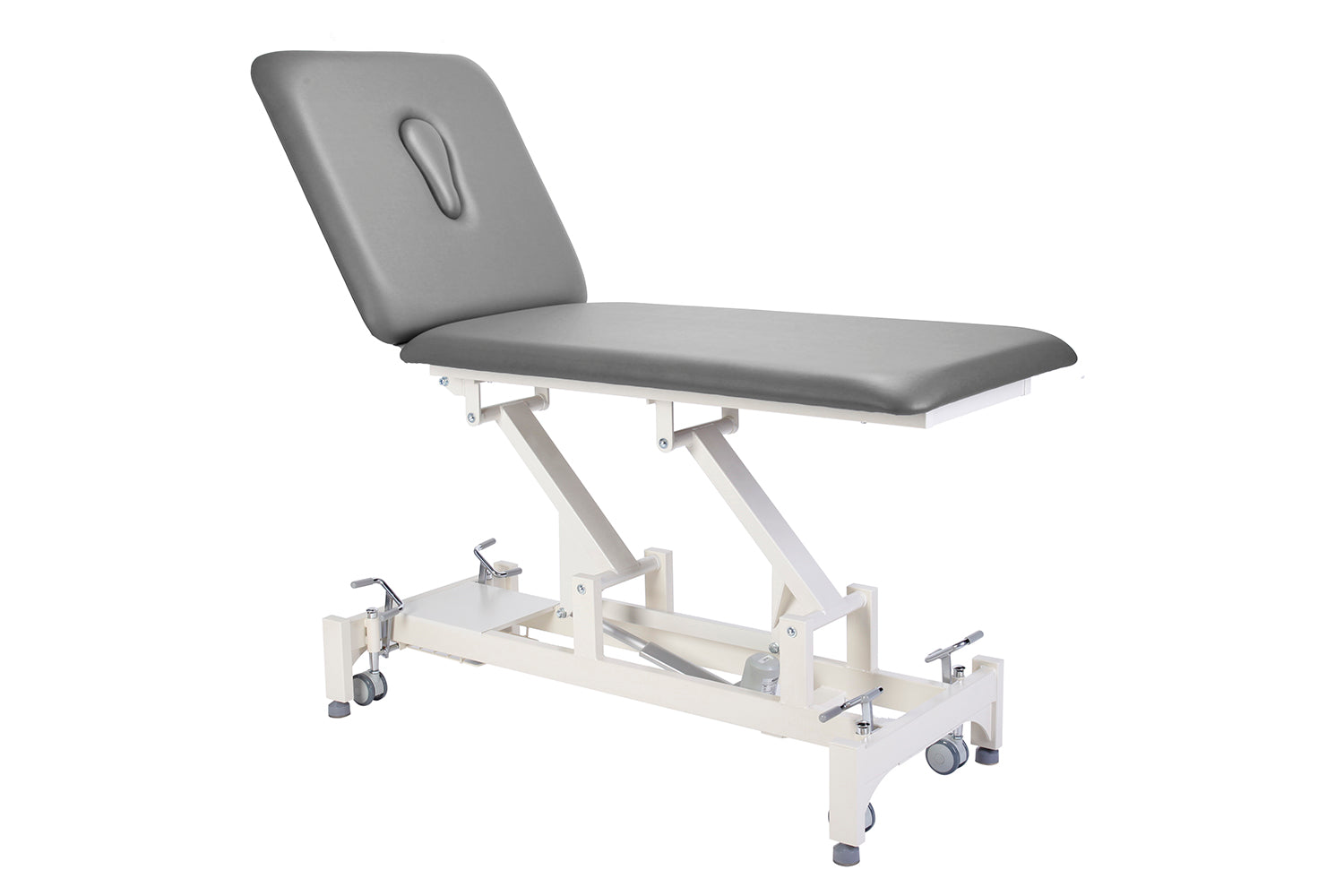

This is a CA20 - 2 Section Therapeutic Table with 1 Motor for Hi / Lo Adjustment. The 2-section therapeutic table has always been a popular model as the body & leg section is made into a single piece and provides sturdy support at all times.
- Hydraulic version (CA20H) is also available (Pre-Order Only)
- Equipped with 1 Motorized Actuator for Hi/Lo Adj.
- Twin “Oversized” Pillars for Added Stability
- Retractable Castors at Both Ends

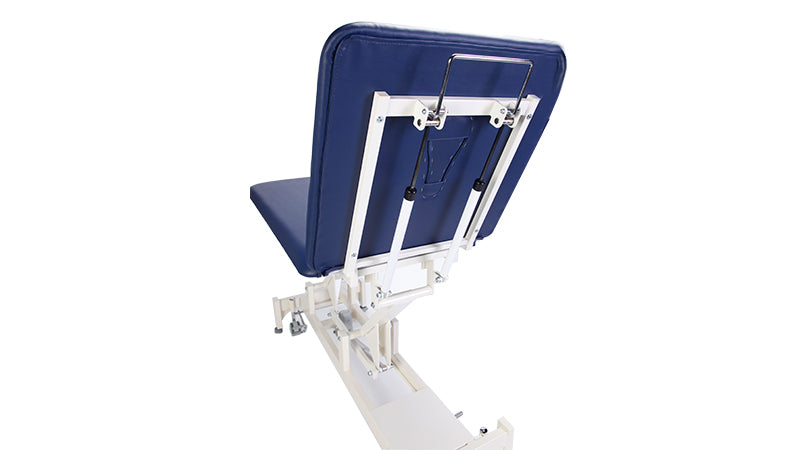

- Twin Gas Struts for Solid Head Section Support
- Maximum User Weight :225 kgs / 496 lbs
- 4-Side elevating foot bars
- 100~240VAC (Universal Voltage)
- Plug Type: US Plug

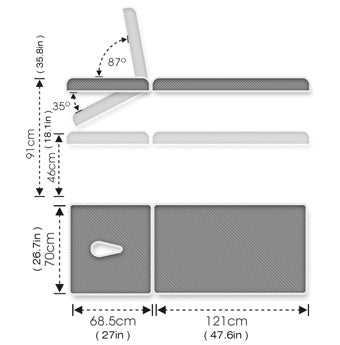

- Minimum Height: 460mm / 18.11” inch
- Maximum Height: 910mm / 35.83” inch
- Table Top Width: 700mm / 27.56” inch
- Head Section Length: 685mm / 26.97” inch
- Leg Section Length: 1210mm / 47.64” inch
- Total Length: 1930mm / 75.98” inch
- Head Tilt Angles: -35º to +87º
- Lift Mechanism: Electric
- Breathing Hole/Plug:1
- Retractable Castors: 4
- Weight Rating (Max. Load): 225kgs / 496lbs
- Weight: 190 lbs.
- Package Dimension: 88X32X22”H
Electrical Data
- Control Box Input Voltage & Rating: 100~240VAC, 50/60Hz, 2A
- Control Box Output Voltage: DC 32V, 80VA
- Actuator Input Voltage: DC 24V
- Duty cycle: Max. 10% 2min. ON / 18min. OFF
- Max. Load: Push 8000N
- Max. Current: Max. 6A
CERTIFIED TO AAMI / CSA / IEC / EN STD
AAMI ES 60601-1, CSA-C22.2 NO. 60601-1
IEC 60601-1, EN 60601-1
The electrical components used are approved by IEC 60601-1
Shipping Policies:
-
We offer standard free shipping to domestic excluded Alaska, Hawaii and Puerto Rico.
-
Standards shipping included Curbside Delivery and Liftgate Service.
(Driver will bring items down to the ground on the driveway of accessible or the curb, customer is responsible for bringing items inside when delivered.)
-
If you require the item to be delivered inside of the building (Inside Delivery), or you need the carrier unbox and assembly for you (White- Glove services), please contact us for the freight quote before purchasing.
Warranty policy:
- 12-month on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
- 24-month on motorized actuator, control box, and metal side bars
- 36-month on table frame and table pillars
